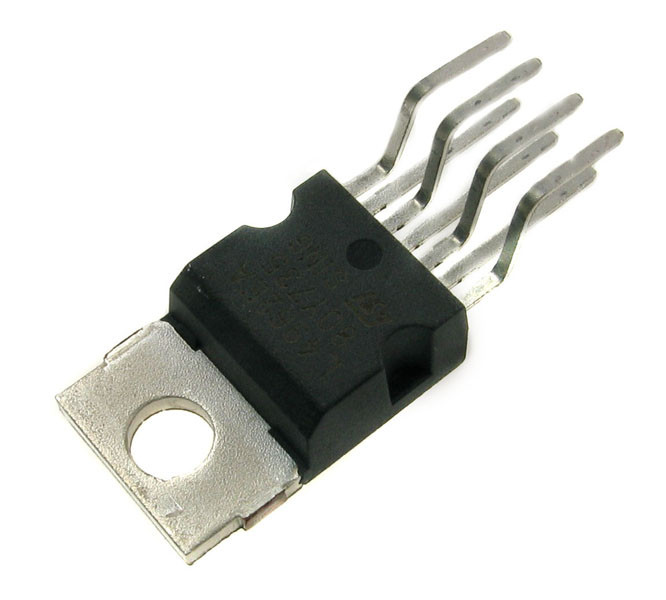

OPA547T-1

Symbol Micros: WOOPA547t1

40070

WOOPA547t1

Contractor Symbol:

Case : TO220/7

Datasheet

Technical drawing Add to favourites

Power Op-Amp, GBW 1MHz, SR 6V/us, Voff 1mV, +/-4÷+/-30V, -40÷85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Nominal voltage:	4V ~ 30V
Bandwidth:	1MHz
Vaoltage rise speed:	6V/us
Case:	TO220/7
Manufacturer:	Texas Instruments
Operating temperature (range):	-40°C ~ 85°C
Integrated circuit type:	Operational amplifier

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Nominal voltage:	4V ~ 30V
Bandwidth:	1MHz
Vaoltage rise speed:	6V/us
Case:	TO220/7
Manufacturer:	Texas Instruments
Operating temperature (range):	-40°C ~ 85°C
Integrated circuit type:	Operational amplifier
Mounting:	THT
Number of channels:	1
