09120052633 HARTING
Symbol Micros:
Z 09120052633
Case : Rys.9120052633

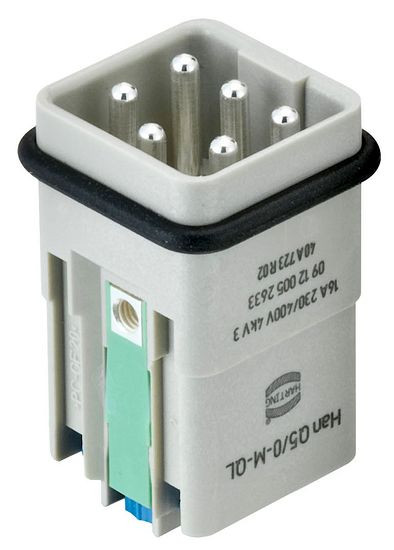

HAN Q 5/0 Insert male quick lock
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Type of pin configuration: | 5+PE |
| Mounting: | Latch clamp |
| Case: | Size 3A |
| Type of connector: | Male |
| Series: | Han Q |
| Type of pin configuration: | 5+PE |
| Mounting: | Latch clamp |
| Case: | Size 3A |
| Type of connector: | Male |
| Series: | Han Q |
Detailed description
Micros Part Number | Z 09120052633 |
Manufacturer Part Number | 09 12 005 2633 |
Combination of contacts | 5/0 |
Gender | male |
Han-Quick Lock® | Yes |
Mechanical working life - mating cycles | >= 500 |
RoHS conformity | Yes |
Size | 3 A |
Han-Quick Lock® slide | blue slide |
Series | Han® Q |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Han-Quick Lock® termination |
Contact resistance | <= 1 mOhm |
Rated current | 16 A |
Rated voltage conductor – ground | 230 V |
Rated voltage conductor – conductor | 400 V |
Rated impulse voltage | 4 kV |
Pollution degree | 3 |
Core insulation diameter, max. | 3,6 mm |
Contact identification, min. | 1 |
Contact identification, max. | 5 |
Wire cross section, min. | 0,5 mm2 |
Wire cross section, max. | 2,5 mm2 |
Wire gauge AWG, min. | AWG 20 |
Wire gauge AWG, max. | AWG 14 |
