09120073001 HARTING
Symbol Micros:
Z 09120073001
Case : Rys.9120073001

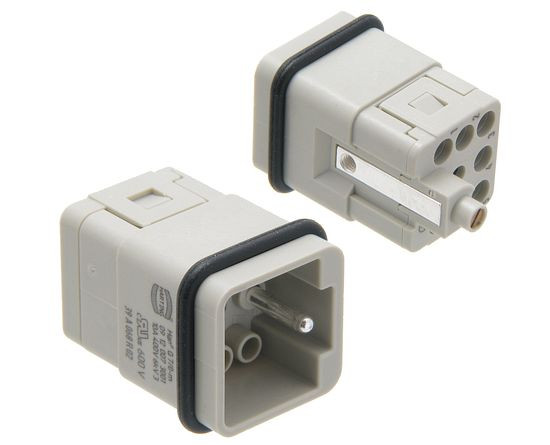

Han Q 7/0-male
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Type of pin configuration: | 7+PE |
| Mounting: | Crimped |
| Case: | Size 3A |
| Type of connector: | Male |
| Series: | Han Q |
| Type of pin configuration: | 7+PE |
| Mounting: | Crimped |
| Case: | Size 3A |
| Type of connector: | Male |
| Series: | Han Q |
Detailed description
Micros Part Number | Z 09120073001 |
Manufacturer Part Number | 09 12 007 3001 |
Combination of contacts | 7/0 |
Gender | male |
Mechanical working life - mating cycles | >= 500 |
RoHS conformity | Yes |
Size | 3 A |
Series | Han® Q |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Crimp terminal |
Hint | Please order crimp contacts separately. |
Rated current | 10 A |
Rated voltage | 400 V |
Rated impulse voltage | 6 kV |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 7 |
Wire cross section, min. | 0,14 mm2 |
Wire cross section, max. | 2,5 mm2 |
