09120173001 HARTING
Symbol Micros:
Z 09120173001
Case : Rys.09120173001

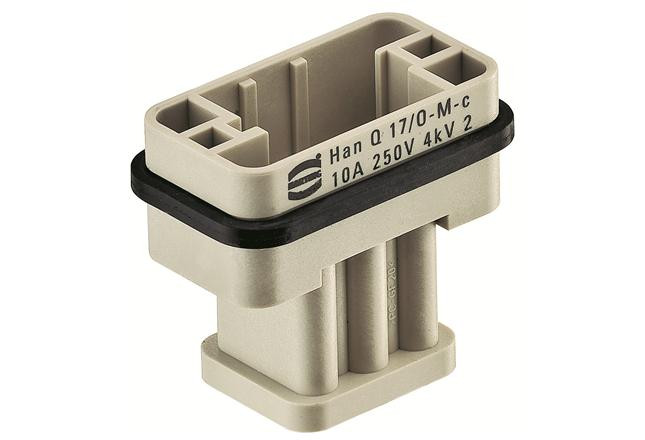

Han Q 17/0 Male Insert Crimp Term
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Type of pin configuration: | 17 |
| Mounting: | Crimped |
| Case: | Compact |
| Type of connector: | Male |
| Series: | Han Q |
Manufacturer:: Harting
Manufacturer part number: 09120173001 RoHS
Case style: Rys.09120173001
In stock:
3 pcs.
| Quantity of pcs. | 1+ | 2+ | 3+ | 4+ | 7+ |
|---|---|---|---|---|---|
| Net price (EUR) | 12,3320 | 10,5938 | 9,8187 | 9,3559 | 8,6230 |
| Type of pin configuration: | 17 |
| Mounting: | Crimped |
| Case: | Compact |
| Type of connector: | Male |
| Series: | Han Q |
Detailed description
Micros Part Number | Z 09120173001 |
Manufacturer Part Number | 09 12 017 3001 |
Combination of contacts | 17/0 |
Gender | male |
Mechanical working life - mating cycles | >= 500 |
RoHS conformity | Yes |
Size | Han-Compact® |
Series | Han® Q |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Crimp terminal |
Hint | Please order crimp contacts separately. |
Rated current | 10 A |
Rated voltage | 160 V |
Rated impulse voltage | 2,5 kV |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 17 |
Wire cross section, min. | 0,14 mm2 |
Wire cross section, max. | 2,5 mm2 |
