09120173101 HARTING
Symbol Micros:
Z 09120173101
Case : Rys.09120173101

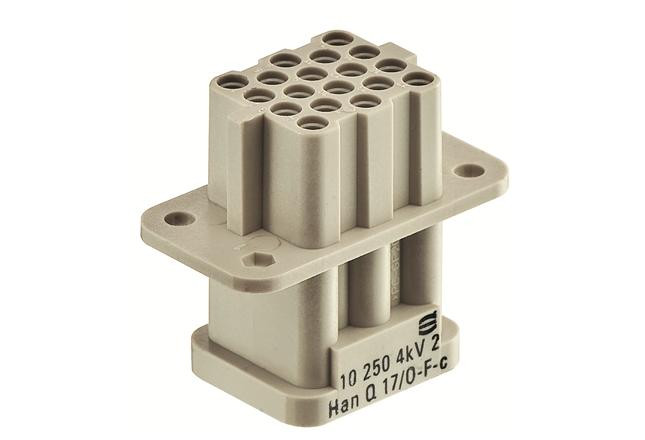

Han Q 17/0 Female Insert Crimp Term
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Type of pin configuration: | 17 |
| Mounting: | Crimped |
| Case: | Compact |
| Type of connector: | Female |
| Series: | Han Q |
Manufacturer:: Harting
Manufacturer part number: 09120173101 RoHS
Case style: Rys.09120173101
In stock:
9 pcs.
| Quantity of pcs. | 1+ | 2+ | 3+ | 9+ |
|---|---|---|---|---|
| Net price (EUR) | 12,4378 | 10,8733 | 10,1687 | 8,8204 |
| Type of pin configuration: | 17 |
| Mounting: | Crimped |
| Case: | Compact |
| Type of connector: | Female |
| Series: | Han Q |
Detailed description
Micros Part Number | Z 09120173101 |
Manufacturer Part Number | 09 12 017 3101 |
Combination of contacts | 17/0 |
Gender | female |
Mechanical working life - mating cycles | >= 500 |
RoHS conformity | Yes |
Size | Han-Compact® |
Series | Han® Q |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Crimp terminal |
Hint | Please order crimp contacts separately. |
Rated current | 10 A |
Rated voltage | 160 V |
Rated impulse voltage | 2,5 kV |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 17 |
Wire cross section, min. | 0,14 mm2 |
Wire cross section, max. | 2,5 mm2 |
