09 14 001 4621 HARTING
Symbol Micros:
Z 09140014621
Case : Rys.09140014621

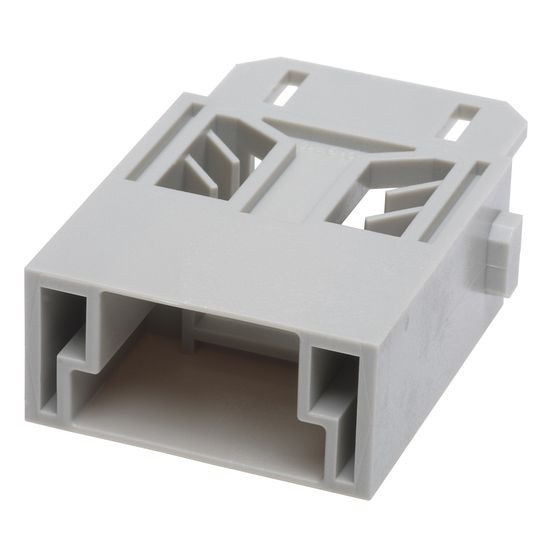

Han-Modular RJ45 Modulefor patch cabel 1A 50 V 0,8 kV 3
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Series: | Han Modular RJ45 |
| Connector type: | HDC |
| Connector: | Module |
| Mounting: | N/A |
| Type of connector: | Male |
| Series: | Han Modular RJ45 |
| Connector type: | HDC |
| Connector: | Module |
| Mounting: | N/A |
| Type of connector: | Male |
Detailed description
Micros Part Number | Z 09140014621 |
Manufacturer Part Number | 09 14 001 4621 |
Gender | male |
Mechanical working life - mating cycles | >= 500 |
RoHS conformity | Yes |
Transmission characteristics | Category 5 / Class D up to 100 MHz, according to ISO/IEC 11 801:2002 and EN 50 173-1 |
Series | Han-Modular® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 70 °C |
Specification | Cat. 5E |
Number of contacts | 8 |
Rated current | 1 A |
Rated voltage | 50 V |
Rated impulse voltage | 0,8 kV |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 8 |
