09 14 008 3001 HARTING
Symbol Micros:
Z 09140083001
Case : Rys.09140083001

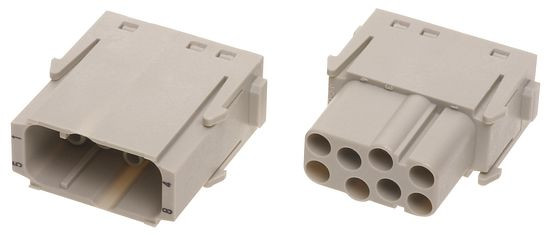

Module Han EE male for 8 contacts 16A
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Series: | Han Modular EE |
| Connector type: | Rectangular |
| Connector: | Module |
| Mounting: | N/A |
| Type of connector: | Male |
Manufacturer:: Harting
Manufacturer part number: 09140083001 RoHS
Case style: Rys.09140123001
In stock:
2 pcs.
| Quantity of pcs. | 1+ | 2+ | 4+ | 20+ | 100+ |
|---|---|---|---|---|---|
| Net price (EUR) | 5,7213 | 5,0910 | 4,6539 | 4,0834 | 3,8395 |
| Series: | Han Modular EE |
| Connector type: | Rectangular |
| Connector: | Module |
| Mounting: | N/A |
| Type of connector: | Male |
Detailed description
Micros Part Number | Z 09140083001 |
Manufacturer Part Number | 09 14 008 3001 |
Gender | male |
Mechanical working life - mating cycles | >= 500 |
Mating cycles with HMC contacts | >= 10,000 |
RoHS conformity | Yes |
Series | Han-Modular® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Crimp terminal |
Number of contacts | 8 |
Hint | Please order crimp contacts separately. |
Rated current | 16 A |
Rated voltage | 400 V |
Rated impulse voltage | 6 Kv |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 8 |
