09 14 020 3101 HARTING
Symbol Micros:
Z 09140203101
Case : Rys.09140203101

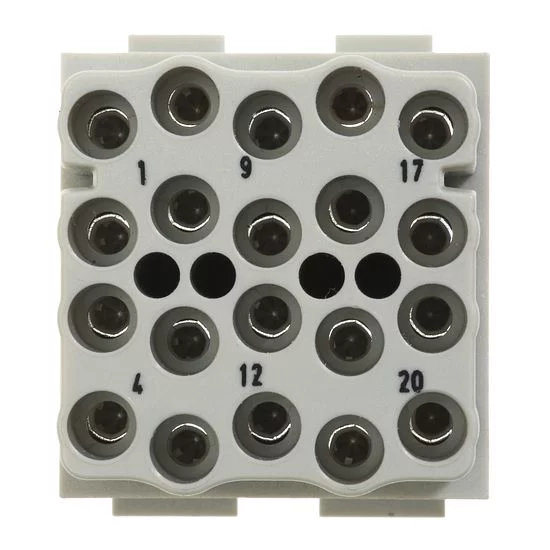

Female module Han-Modular EEE 20pin for crimp contacts
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Series: | Han Modular EEE |
| Connector type: | HAN |
| Connector: | Module |
| Mounting: | N/A |
| Type of connector: | Female |
Manufacturer:: Harting
Manufacturer part number: 09140203101 RoHS
Case style: Rys.09140203101
In stock:
1 pcs.
| Quantity of pcs. | 1+ | 2+ | 3+ |
|---|---|---|---|
| Net price (EUR) | 10,1912 | 8,0724 | 7,1269 |
| Series: | Han Modular EEE |
| Connector type: | HAN |
| Connector: | Module |
| Mounting: | N/A |
| Type of connector: | Female |
Detailed description
Micros Part Number | Z 09140203101 |
Manufacturer Part Number | 09 14 020 3101 |
Gender | female |
Mechanical working life - mating cycles | >= 500 |
Mating cycles with HMC contacts | >= 10,000 |
RoHS conformity | Yes |
Series | Han-Modular® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Crimp terminal |
Number of contacts | 20 |
Hint | Please order crimp contacts separately. |
Rated current | 16 A |
Rated voltage | 500 V |
Rated impulse voltage | 6 kV |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 20 |
