09181209622 HARTING IDC connector

Symbol Micros: Z 09181209622

53513

Z 09181209622

Contractor Symbol:

Case : Rys.09181209622

Datasheet

Technical drawing Add to favourites

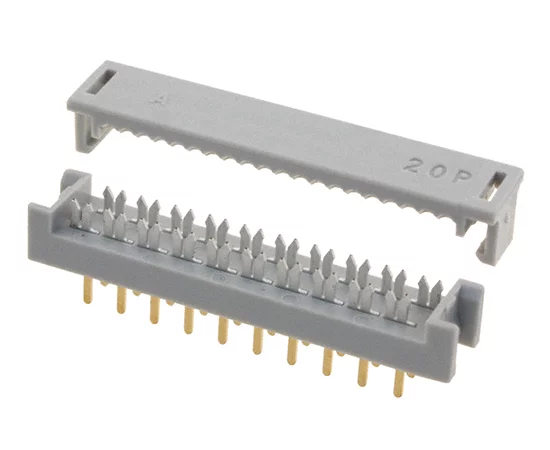

SEK series, 09181209622 Harting, 20 contacts, PCB IDC transition for flat cable, low-profile version, solder pins, h=5.5 mm PCB, 2 rows

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	20
Mounting:	Tape mounting (AWG28)
Terminal pitch:	2,54mm
Gold plating:	Gold plated contacts
Type of connector:	Male

All parameters

Manufacturer:: Harting Manufacturer part number: 09181209622 RoHS Case style: Rys.09181209622 Datasheet

In stock:

14 pcs.

Quantity of pcs.	1+	5+	29+	116+	464+
Net price (EUR)	1,3342	0,9349	0,7728	0,7235	0,7023

Add to comparison tool Add inquiry (RFQ)

Packaging:
29 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	20
Mounting:	Tape mounting (AWG28)
Terminal pitch:	2,54mm
Gold plating:	Gold plated contacts
Type of connector:	Male
