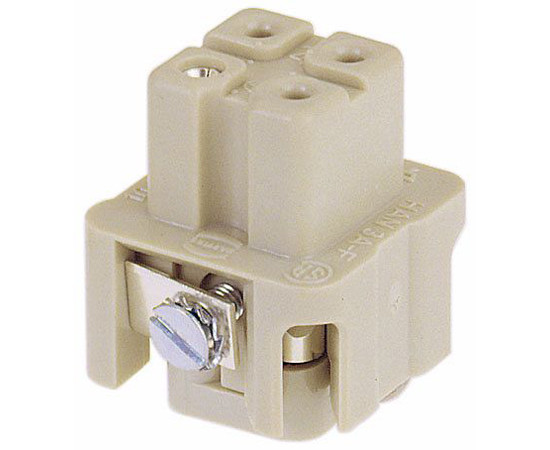

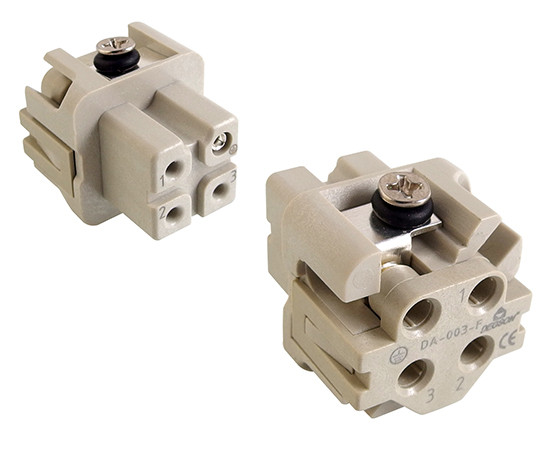

Insert with female contacts HAN A, size 3A

Micros Part Number

Z 09200032711

Manufacturer Part Number

09 20 003 2711

Gender

female

Mechanical working life - mating cycles

>= 500

RoHS conformity

Yes

Size

3 A

Series

Han A®

Limiting temperature, min.

-40 °C

Limiting temperature, max.

125 °C

Termination method

Screw terminal

Number of contacts

3

Rated current

10 A

Rated voltage conductor – ground

230 V

Rated voltage conductor – conductor

400 V

Rated impulse voltage

4 kV

Pollution degree

3

Contact identification, min.

1

Contact identification, max.

3

Wire cross section, min.

0.75 mm2

Wire cross section, max.

1.5 mm2

Wire gauge AWG, min.

AWG 18

Wire gauge AWG, max.

AWG 14

Rated current, alternative

10 A

Rated voltage, alternative

250 V

Rated impulse voltage, alternative

4 kV
