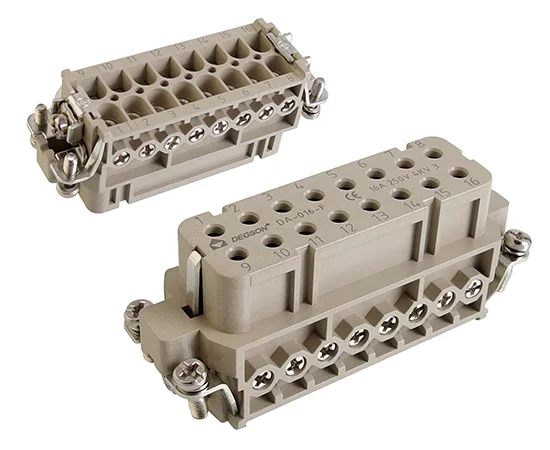

Insert with female contacts HAN A, size 16A

Symbol Micros: Z 09200162812
Contractor Symbol:
Case : Rys.09200162812
Technical drawing Add to favourites
16 poles+PE, 16 A 230/400 V 4 kV 3, screw termination
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
Case: Size 16A
Mounting: Screw clamps
Type of pin configuration: 16+PE
Connector: Connect pad
Series: Han A
Manufacturer:: Harting Manufacturer part number: 09200162812 RoHS Case style: Rys.09200162812
In stock:
1 pcs.
Quantity of pcs. 1+ 2+ 3+ 5+ 13+
Net price (EUR) 17,2127 15,3857 14,5563 13,7061 12,5634
Add to comparison tool
Packaging:
13
Case: Size 16A
Mounting: Screw clamps
Type of pin configuration: 16+PE
Connector: Connect pad
Series: Han A
Detailed description




Micros Part Number

Z 09200162812

Manufacturer Part Number

09 20 016 2812

Gender

female

Mechanical working life - mating cycles

>= 500

RoHS conformity

Yes

Size

16 A

Series

Han A®

Limiting temperature, min.

-40 °C

Limiting temperature, max.

125 °C

Termination method

Screw terminal

Number of contacts

16

Rated current

16 A

Rated voltage

250 V

Rated impulse voltage

4 kV

Pollution degree

3

Contact identification, min.

1

Contact identification, max.

16

Wire cross section, min.

0.75 mm2

Wire cross section, max.

2,5 mm2

Wire gauge AWG, min.

AWG 18

Wire gauge AWG, max.

AWG 14
