09 21 007 3131 HARTING
Symbol Micros:
Z 09210073131
Case : Rys.09210073131

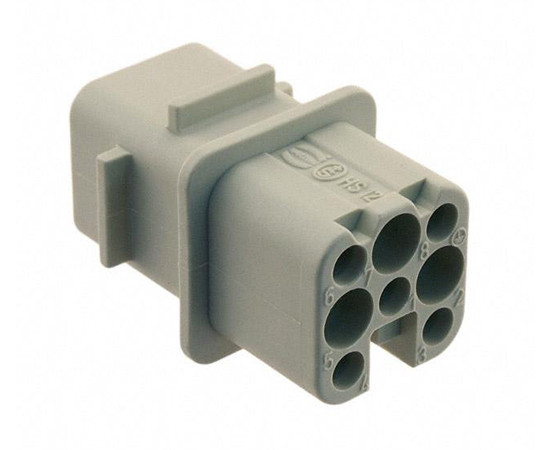

Han D 7 Pos. F Insert Crimp 7 poles, 10A, 250V, cross section 0.14-2.5mm2
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Series: | Han Q |
| Type of pin configuration: | 7+PE |
| Case: | Size 3A |
| Connector: | HDC |
| Type of connector: | Female |
| Series: | Han Q |
| Type of pin configuration: | 7+PE |
| Case: | Size 3A |
| Connector: | HDC |
| Type of connector: | Female |
Detailed description
Micros Part Number | Z 09210073131 |
Manufacturer Part Number | 09 21 007 3131 |
Gender | female |
Mechanical working life - mating cycles | >= 500 |
RoHS conformity | Yes |
Size | 3 A |
Series | Han D® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Crimp terminal |
Number of contacts | 7 |
Hint | Please order crimp contacts separately. only for thermoplastic hoods/housings |
Rated current | 10 A |
Rated voltage | 250 V |
Rated impulse voltage | 4 kV |
Pollution degree | 3 |
Rated current, wrap terminal | 2 A |
Rated voltage, wrap terminal | 30 V |
Contact identification, min. | 1 |
Contact identification, max. | 7 |
