09 33 000 6121 HARTING

Symbol Micros: Z 09330006121

48813

Z 09330006121

Contractor Symbol:

Case : Rys.09330006121

Datasheet

Technical drawing Add to favourites

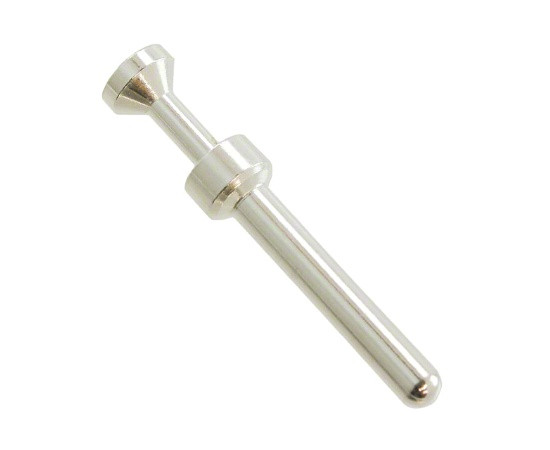

Crimp contact for male insert HAN E silver plated, cross section 0.5 mm2

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Case:	N/A
Mounting:	Crimped
Series:	Han E
Type of pin configuration:	N/A
Connector:	Contact
Type of connector:	Male

All parameters

Manufacturer:: Harting Manufacturer part number: 09330006121 RoHS Case style: Rys.09330006121 Datasheet

In stock:

70 pcs.

Quantity of pcs.	2+	15+	100+	300+	1000+
Net price (EUR)	0,4953	0,2765	0,2170	0,2046	0,1981

Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters
• Description

Case:	N/A
Mounting:	Crimped
Series:	Han E
Type of pin configuration:	N/A
Connector:	Contact
Type of connector:	Male

Detailed description

Micros Part Number	Z 09330006121
Manufacturer Part Number	09 33 000 6121
Gender	male
RoHS conformity	Yes
Type of contact	Crimp contact
Series	Han E®
Contact resistance	<= 1 mOhm
Rated current	16 A
Wire cross section	0,5 mm2
Wire gauge AWG	AWG 20
