09 36 008 2632 HARTING
Symbol Micros:
Z 09360082632
Case : Rys.09360082632

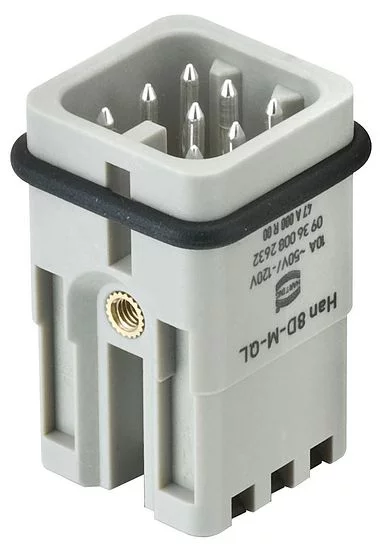

Insert with male contacts HAN D, size 3A 8 poles, 10 A 50 V/-120 V 0.8 kV 3, Han-Quick Lock termination
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Series: | Quick Lock |
| Type of pin configuration: | 8 |
| Case: | Size 3A |
| Connector: | HDC |
| Type of connector: | Male |
| Series: | Quick Lock |
| Type of pin configuration: | 8 |
| Case: | Size 3A |
| Connector: | HDC |
| Type of connector: | Male |
Detailed description
Micros Part Number | Z 09360082632 |
Manufacturer Part Number | 09 36 008 2632 |
Gender | male |
Han-Quick Lock® | Yes |
Mechanical working life - mating cycles | >= 500 |
Size | 3 A |
Series | Han D® |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Han-Quick Lock® termination |
Number of contacts | 8 |
Hint | for thermoplastics and metal hoods/housings |
Contact resistance | <= 3 mOhm |
Rated voltage AC | 50 V |
Rated voltage DC | 120 V |
Rated current | 10 A |
Rated voltage | 50 V |
Rated impulse voltage | 0,8 kV |
Pollution degree | 3 |
Core insulation diameter, max. | 3 mm |
Contact identification, min. | 1 |
Contact identification, max. | 8 |
Wire cross section, min. | 0,25 mm2 |
Wire cross section, max. | 1,5 mm2 |
Wire gauge AWG, min. | AWG 24 |
Wire gauge AWG, max. | AWG 16 |
