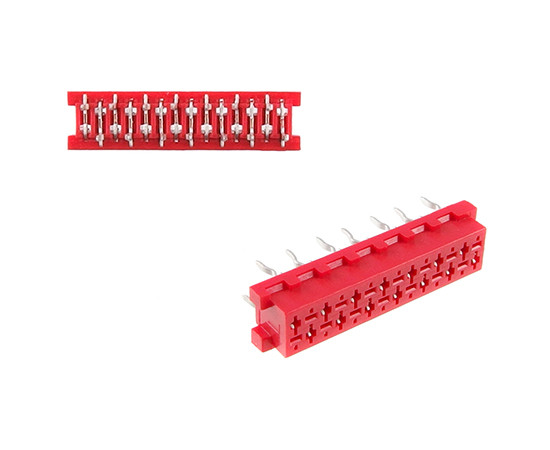

DS1015-04-14R6XB CONNFLY Socket "Micro-Match"

Symbol Micros: Z AMP215079-14-C

67910

Z AMP215079-14-C

Contractor Symbol:

Case : Rys.AMP-8-215079-4C

Datasheet

Technical drawing Add to favourites

Female, 14pin straight , for PCB, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-8-215079-4

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	14
Type of pin configuration:	2x7
Mounting:	THT
Connector:	Socket
Spatial orientation:	Straight
Type of connector:	Female
Current:	1A

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1015-04-14R6XB RoHS Case style: Rys.AMP-8-215079-4C

In stock:

1836 pcs.

Quantity of pcs.	2+	10+	29+	116+	464+
Net price (EUR)	0,8386	0,5262	0,4393	0,3876	0,3641

Add to comparison tool Add inquiry (RFQ)

Packaging:
29 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1015-04-14R6XB RoHS Case style: Rys.AMP-8-215079-4C

In stock:

14 pcs.

Quantity of pcs.	2+	10+	29+	145+	580+
Net price (EUR)	0,8386	0,5285	0,4416	0,3829	0,3641

Add to comparison tool Add inquiry (RFQ)

Packaging:
14 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	14
Type of pin configuration:	2x7
Mounting:	THT
Connector:	Socket
Spatial orientation:	Straight
Type of connector:	Female
Current:	1A
Operating voltage:	100V
