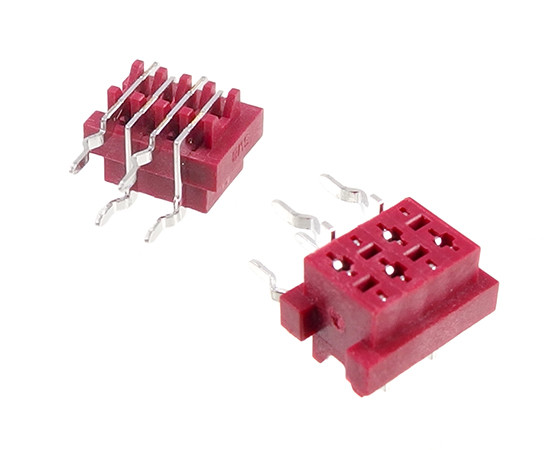

C3129-04PYNTR0R HSM Socket "Micro-Match"

Symbol Micros: Z AMP215460-04

21976

Z AMP215460-04

Contractor Symbol:

Case : Rys.AMP-7-215460-4

Datasheet

Technical drawing Add to favourites

Female, 4pin angled , for PCB, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-7-215460-4

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	4
Type of pin configuration:	2x2
Mounting:	THT
Connector:	Socket
Spatial orientation:	Angled
Type of connector:	Female
Current:	1A

All parameters

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 7-215460-4 Case style: Rys.AMP-7-215460-4

External warehouse:

1720 pcs.

Quantity of pcs.	1+ (Inappropriate quantity? Ask for a different one).
Net price (EUR)	0,3762

Add to comparison tool Add inquiry (RFQ)

Packaging:
250

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	4
Type of pin configuration:	2x2
Mounting:	THT
Connector:	Socket
Spatial orientation:	Angled
Type of connector:	Female
Current:	1A
Operating voltage:	100V
