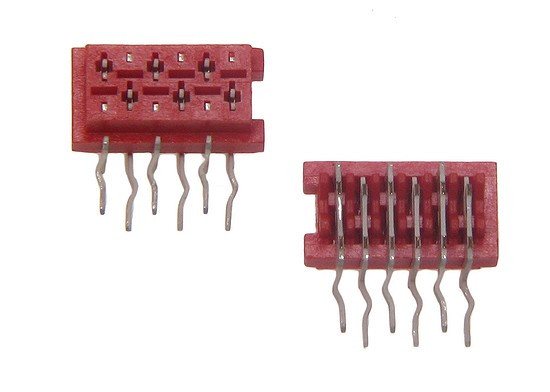

C3129-06PYNTR0R HSM Socket "Micro-Match"

Symbol Micros: Z AMP215460-06

21977

Z AMP215460-06

Contractor Symbol:

Case : Rys.AMP-7-215460-6

Datasheet

Technical drawing Add to favourites

Female, 6pin angled , for PCB, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-7-215460-6

Parameters

Number of pins:	6
Type of pin configuration:	2x3
Mounting:	THT
Connector:	Socket
Operating voltage:	100V
Spatial orientation:	Angled
Type of connector:	Female

All parameters

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.AMP-7-215460-6

In stock:

23 pcs.

Quantity of pcs.	3+	15+	62+	186+	744+
Net price (EUR)	0,2749	0,1563	0,1190	0,1068	0,1001

Add to comparison tool Add inquiry (RFQ)

Packaging:
62/186 Quantity (multiple: 1)

- +

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 7-215460-6 Case style: Rys.AMP-7-215460-6

External warehouse:

14610 pcs.

Quantity of pcs.	250+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,4651

Add to comparison tool Add inquiry (RFQ)

Packaging:
250

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 7-215460-6 Case style: Rys.AMP-7-215460-6

External warehouse:

500 pcs.

Quantity of pcs.	250+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,5554

Add to comparison tool Add inquiry (RFQ)

Packaging:
250

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	6
Type of pin configuration:	2x3
Mounting:	THT
Connector:	Socket
Operating voltage:	100V
Spatial orientation:	Angled
Type of connector:	Female
Current:	1A
