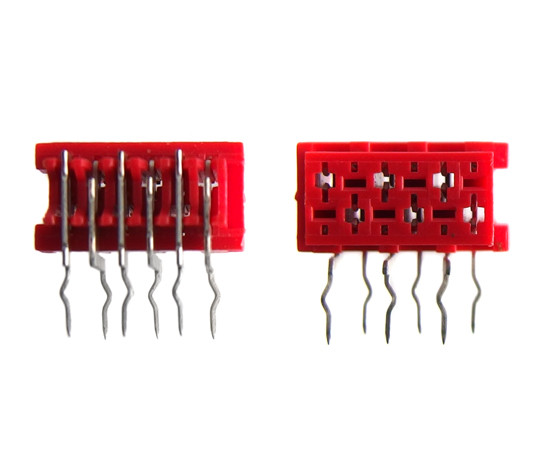

DS1015-05-06R6B CONNFLY Socket "Micro-Match"

Symbol Micros: Z AMP215460-06-C

67865

Z AMP215460-06-C

Contractor Symbol:

Case : Rys.AMP-7-215460-6C

Datasheet

Technical drawing Add to favourites

Female, 6pin angled , for PCB, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-7-215460-6

Parameters

Number of pins:	6
Type of pin configuration:	2x3
Mounting:	THT
Connector:	Socket
Operating voltage:	100V
Spatial orientation:	Angled
Type of connector:	Female

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1015-05-06R6B RoHS Case style: Rys.AMP-7-215460-6C Datasheet

In stock:

976 pcs.

Quantity of pcs.	3+	15+	61+	305+	1220+
Net price (EUR)	0,4437	0,2615	0,2029	0,1782	0,1702

Add to comparison tool Add inquiry (RFQ)

Packaging:
61/1952 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1015-05-06R6T RoHS Case style: Rys.AMP-7-215460-6C

In stock:

44 pcs.

Quantity of pcs.	2+	10+	44+	220+	1100+
Net price (EUR)	0,4577	0,2779	0,2167	0,1922	0,1833

Add to comparison tool Add inquiry (RFQ)

Packaging:
44 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	6
Type of pin configuration:	2x3
Mounting:	THT
Connector:	Socket
Operating voltage:	100V
Spatial orientation:	Angled
Type of connector:	Female
Current:	1A
