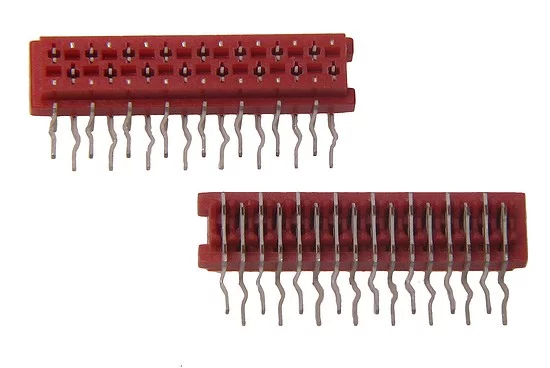

C3129-16PYNTR0R HSM Socket "Micro-Match"

Symbol Micros: Z AMP215460-16

21982

Z AMP215460-16

Contractor Symbol:

Case : Rys.AMP-8-215460-6

Datasheet

Technical drawing Add to favourites

Female, 16pin angled , for PCB, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-8-215460-6

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	16
Type of pin configuration:	2x8
Mounting:	THT
Connector:	Socket
Spatial orientation:	Angled
Type of connector:	Female
Current:	1A

All parameters

Manufacturer:: HSM Manufacturer part number: C3129-16PYNTR0R RoHS Case style: Rys.AMP-8-215460-6

In stock:

195 pcs.

Quantity of pcs.	1+	5+	26+	200+	400+
Net price (EUR)	1,0899	0,7235	0,5849	0,5262	0,5191

Add to comparison tool Add inquiry (RFQ)

Packaging:
26/200 Quantity (multiple: 1)

- +

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 8-215460-6 Case style: Rys.AMP-8-215460-6

External warehouse:

1101 pcs.

Quantity of pcs.	250+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,1940

Add to comparison tool Add inquiry (RFQ)

Packaging:
250

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	16
Type of pin configuration:	2x8
Mounting:	THT
Connector:	Socket
Spatial orientation:	Angled
Type of connector:	Female
Current:	1A
Operating voltage:	100V
