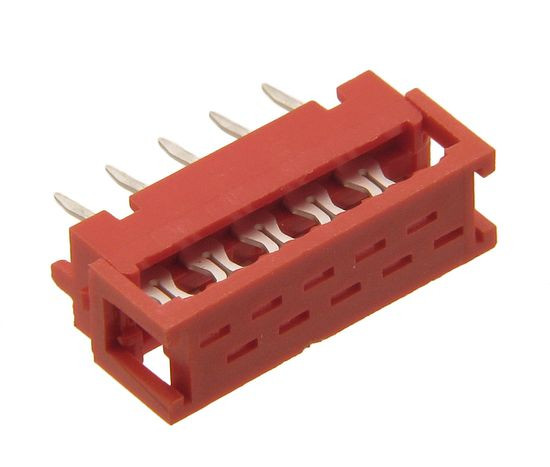

8-215570-0 TE-CONNECTIVITY Adapter "Micro-Match"

Symbol Micros: Z AMP215570-10

20869

Z AMP215570-10

Contractor Symbol:

Case : Rys.AMP-8-215570-0

Datasheet

Technical drawing Add to favourites

Male,10pin connector for ribbon cable, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-8-215570-0

Parameters

Number of pins:	10
Type of pin configuration:	2x5
Mounting:	Tape mounting, PCB
Connector:	Adapter
Spatial orientation:	Straight
Type of connector:	Male
Current:	1A

All parameters

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 8-215570-0 Case style: Rys.AMP-8-215570-0

External warehouse:

21485 pcs.

Quantity of pcs.	250+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,6990

Add inquiry (RFQ)

Packaging:
250

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 8-215570-0 Case style: Rys.AMP-8-215570-0

External warehouse:

5000 pcs.

Quantity of pcs.	250+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,9853

Add to comparison tool Add inquiry (RFQ)

Packaging:
250

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	10
Type of pin configuration:	2x5
Mounting:	Tape mounting, PCB
Connector:	Adapter
Spatial orientation:	Straight
Type of connector:	Male
Current:	1A
Operating voltage:	100V
