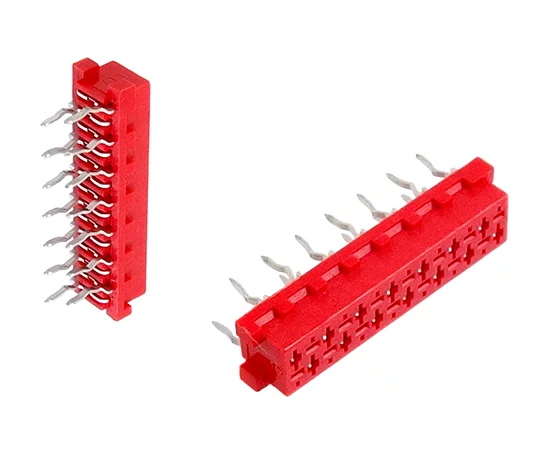

DS1015-02-12R6 CONNFLY Adapter "Micro-Match"

Symbol Micros: Z AMP215570-14-C

67926

Z AMP215570-14-C

Contractor Symbol:

Case : Rys.AMP-8-215570-4C

Datasheet

Technical drawing Add to favourites

Male,14pin connector for ribbon cable, pitch 1,27mm, 1A, 100V, operating temp. -40C+105C eqiv. AMP-8-215570-4

Parameters

Number of pins:	14
Type of pin configuration:	2x7
Mounting:	Tape mounting, PCB
Connector:	Adapter
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	14
Type of pin configuration:	2x7
Mounting:	Tape mounting, PCB
Connector:	Adapter
Operating voltage:	100V
Spatial orientation:	Straight
Type of connector:	Male
Current:	1A
