Z C01/02-C

Symbol Micros: Z C01/02-C

122074

Z C01/02-C

Contractor Symbol:

Case : Rys.C01/02-C

Technical drawing Add to favourites

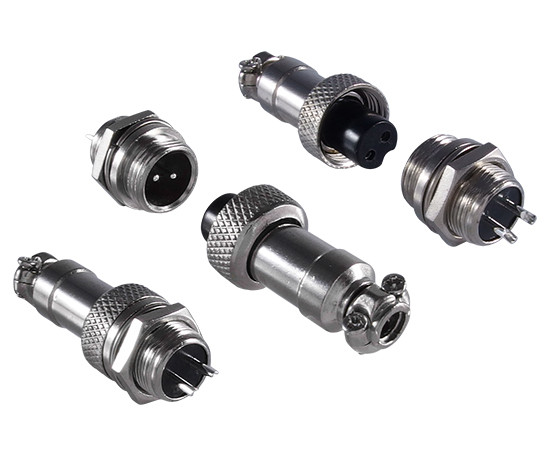

Set: jack for soldering wires & plug on the panel C01 2pin black insulator, length 43.6mm, pin diameter 1.5mm

Parameters

Number of pins:	2
Manufacturer:	CONNECTAR
Mounting:	On panel
Connector:	Socket + plug
Type of connector:	Female+male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	2
Manufacturer:	CONNECTAR
Mounting:	On panel
Connector:	Socket + plug
Type of connector:	Female+male
