Z C01/04 Dafa Linker

Symbol Micros: Z C01/04

45412

Z C01/04

Contractor Symbol:

Case : Rys.C01/04

Datasheet

Technical drawing Add to favourites

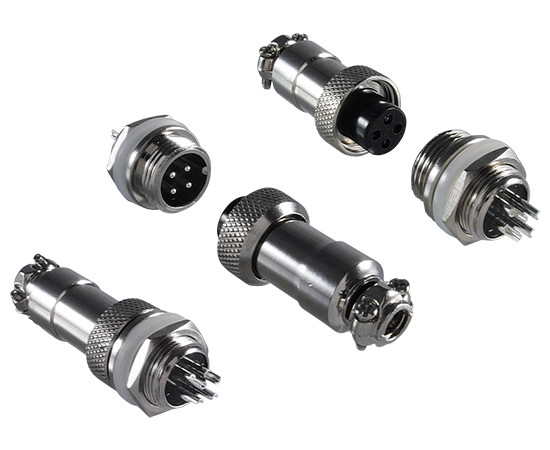

Set: jack for soldering wires & plug on the panel C01 4pin black insulator, length 43.6mm, pin diameter 1.5mm

Parameters

Number of pins:	4
Current:	5A
Operating voltage:	125V
Manufacturer:	DAFA LINKER
Mounting:	On panel
Connector:	Socket + plug
Type of connector:	Female+male

All parameters

Manufacturer:: DAFA LINKER Manufacturer part number: GX12-4(GX12K4P+GX12J4Z) RoHS Case style: Rys.C01/04 Datasheet

In stock:

700 pcs.

Quantity of pcs.	1+	5+	30+	150+	300+
Net price (EUR)	1,2237	0,8549	0,7040	0,6537	0,6442

Add to comparison tool Add inquiry (RFQ)

Packaging:
150/1000 Quantity (multiple: 1)

- +

Manufacturer:: DAFA LINKER Manufacturer part number: GX12-4P RoHS Case style: Rys.C01/04 Datasheet

In stock:

258 pcs.

Quantity of pcs.	1+	5+	30+	125+	250+
Net price (EUR)	1,2237	0,8525	0,7016	0,6561	0,6442

Add to comparison tool Add inquiry (RFQ)

Packaging:
125 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-08-10

Quantity of pcs.: 1000





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-06-30

Quantity of pcs.: 1000

• Parameters

Number of pins:	4
Current:	5A
Operating voltage:	125V
Manufacturer:	DAFA LINKER
Mounting:	On panel
Connector:	Socket + plug
Type of connector:	Female+male
