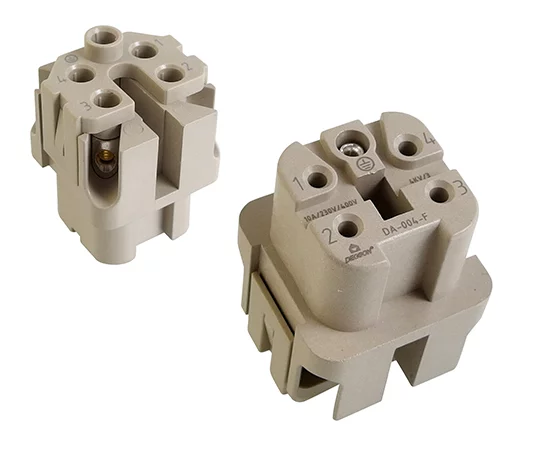

Insert with female contacts, size 3A, 4 poles+PE, 10A, 250V

Symbol Micros: Z DA-004-F

107726

Z DA-004-F

Contractor Symbol:

Case : Rys.DA-004-F

Datasheet

Technical drawing Add to favourites

screw terminal, wire gauge: 1-2.5mm, AWG:18-14, matching: Z D3A eqiv. HARTING 09200042711, 10.4320 LAPP

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	4 pola+PE
Housing size:	3A
Current:	10A
Mounting:	Screw clamps
Operating voltage:	250V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	4 pola+PE
Housing size:	3A
Current:	10A
Mounting:	Screw clamps
Operating voltage:	250V
