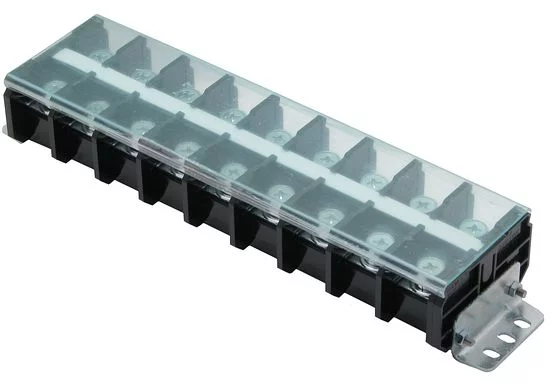

DGR150-09P-13-20AH DEGSON Terminal block

Symbol Micros: Z DGR150/09-20

65521

Z DGR150/09-20

Contractor Symbol:

Case : Rys.DGR150/09

Datasheet

Technical drawing Add to favourites

9 poles, pitch 27.0mm, height 70.0mm, black color 800V, 155A, 20-2/0AWG, 50.0mm2, PC, UL94V-0, M8

Parameters

Height:	70,0mm
Terminal pitch:	27,0mm
Number of pins:	9
Manufacturer:	DEGSON
Colour:	Black

All parameters

Manufacturer:: DEGSON Manufacturer part number: DGR150-09P-1320AHRoHS Case style: Rys.DGR150/09 Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+
Net price (EUR)	13,5128

Add to comparison tool Add inquiry (RFQ)

Packaging:
1 Quantity (multiple: 1)

- +

• Parameters

Height:	70,0mm
Terminal pitch:	27,0mm
Number of pins:	9
Manufacturer:	DEGSON
Colour:	Black
