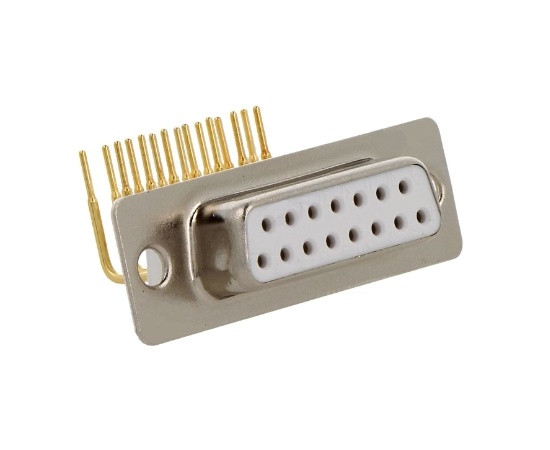

DS1034-03-15FWN8SS CONNFLY D-Sub Connector

Symbol Micros: Z DK15G9-2

113703

Z DK15G9-2

Contractor Symbol:

Case : Rys.DK15G9-2

Datasheet

Technical drawing Add to favourites

female; 15pin; for PCB, angled; standard; 9.4mm; w/o rivets and screws, w/o procection; copper alloy contacts, white insulator, eqiv. DH15F

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	15
Colour:	White
Manufacturer:	CONNFLY
Type of connector:	Plug
Orientation:	Angled

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1034-03-15FWN8SS RoHS Case style: Rys.DK15G9-2

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	2,1110	1,6742	1,5145	1,4324	1,4065

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1034-03-15FWN8SS RoHS Case style: Rys.DK15G9-2

In stock:

80 pcs.

Quantity of pcs.	1+	5+	20+	80+	240+
Net price (EUR)	2,1110	1,6719	1,5099	1,4347	1,4065

Add to comparison tool Add inquiry (RFQ)

Packaging:
80 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	15
Colour:	White
Manufacturer:	CONNFLY
Type of connector:	Plug
Orientation:	Angled
