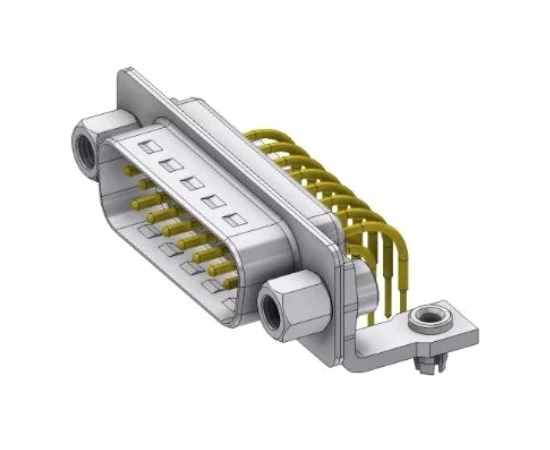

DTS15PYC/2M47UNB5 DELTRON D-Sub Connector

Symbol Micros: Z DK15W9-2M47UNB5-DELTRON

112646

Z DK15W9-2M47UNB5-DELTRON

Contractor Symbol:

Case : Rys.DE015366

Datasheet

Technical drawing Add to favourites

male; 15pin; for PCB; angled 9.4mm; length od bolt: 5mm; thread: UNC4-40; plating on shell: Tin copper alloy, white insulator

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Colour:	White
Number of pins:	9
Manufacturer:	DELTRON
Type of connector:	Plug
Orientation:	Angled

All parameters

Manufacturer:: DELTRON Manufacturer part number: DTS15PYC/2M47UNB5 RoHS Case style: Rys.DE015366 Datasheet

In stock:

5 pcs.

Quantity of pcs.	1+	5+	10+	20+	50+
Net price (EUR)	8,6129	6,9572	6,5583	6,2770	6,0233

Add to comparison tool Add inquiry (RFQ)

Packaging:
5 Quantity (multiple: 1)

- +

• Parameters

Colour:	White
Number of pins:	9
Manufacturer:	DELTRON
Type of connector:	Plug
Orientation:	Angled
