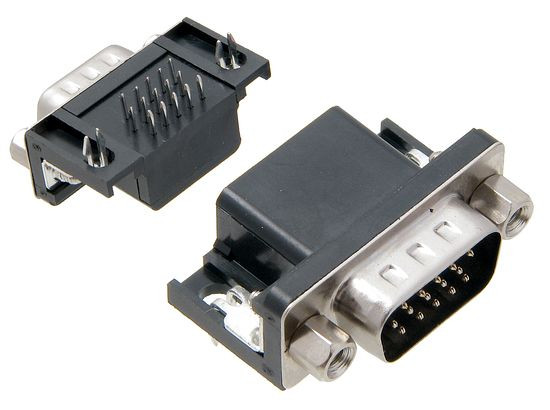

DS1038-15MBNSiA74 CONNFLY HD D-Sub Connector

Symbol Micros: Z DKG15W9

27958

Z DKG15W9

Contractor Symbol:

Case : Rys.DKG15W9

Datasheet

Technical drawing Add to favourites

male; 15pin; for PCB; angled; HD; thread insert 4-40UNC, with boardlock, metal housing; gold plated contacts, black insulator, eqiv. DMR15M-HD

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	15
Colour:	Black
Manufacturer:	CONNFLY
Type of connector:	Plug
Orientation:	Angled

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: DS1038-15MBNSiA74 Pf Case style: Rys.DKG15W9

In stock:

280 pcs.

Quantity of pcs.	3+	20+	100+	400+	2000+
Net price (EUR)	0,4512	0,2491	0,1972	0,1805	0,1732

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/400 Quantity (multiple: 1)

- +

Manufacturer:: CONNECTAR Manufacturer part number: DS1038-15MBNSiA74 Pf Case style: Rys.DKG15W9

In stock:

95 pcs.

Quantity of pcs.	2+	5+	20+	95+	380+
Net price (EUR)	0,4559	0,3313	0,2373	0,1965	0,1826

Add to comparison tool Add inquiry (RFQ)

Packaging:
95 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	15
Colour:	Black
Manufacturer:	CONNFLY
Type of connector:	Plug
Orientation:	Angled
