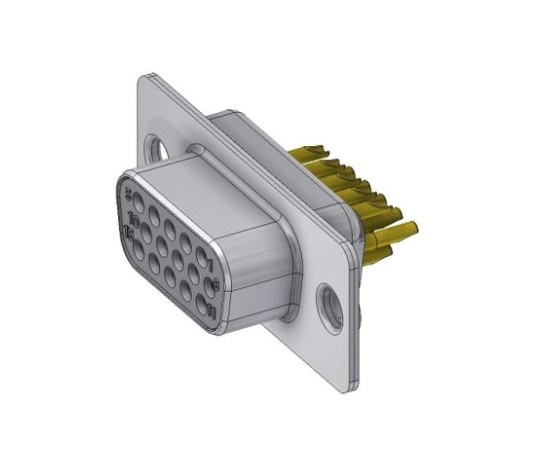

HD-D15SZ/2 DELTRON HD D-Sub Connector

Symbol Micros: Z DLG15G-DELTRON

112659

Z DLG15G-DELTRON

Contractor Symbol:

Case : Rys.DE008386

Datasheet

Technical drawing Add to favourites

female; 15pin; solder terminals,through hole, w/o rivets and screws, metal housing; copper alloy, white insulator

Parameters

Colour:	White
Number of pins:	15
Manufacturer:	DELTRON
Type of connector:	Socket
Orientation:	Straight

All parameters

Manufacturer:: DELTRON Manufacturer part number: HD-D15SZ/2 RoHS Case style: Rys.DE008386 Datasheet

In stock:

5 pcs.

Quantity of pcs.	1+	5+	10+	30+	100+
Net price (EUR)	6,7910	5,4505	5,1345	4,8162	4,6199

Add to comparison tool Add inquiry (RFQ)

Packaging:
5 Quantity (multiple: 1)

- +

• Parameters

Colour:	White
Number of pins:	15
Manufacturer:	DELTRON
Type of connector:	Socket
Orientation:	Straight
