C0580-09MDASL0R HSM D-Sub Connector

Symbol Micros: Z DT09W

12995

Z DT09W

Contractor Symbol:

Case : Rys.DIDC09P

Datasheet

Technical drawing Add to favourites

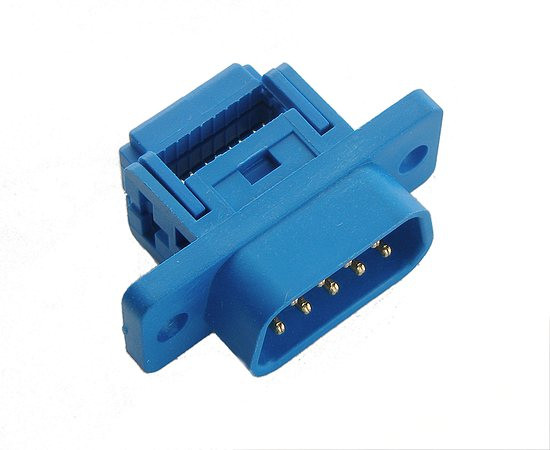

male; 9pin; blue color,through hole, w/o rivets and screws, plastic housing for ribbon cable; gold plated contacts, blue insulator eqiv. DSF09LC, DIDC09P-2

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	9
Colour:	Blue
Manufacturer:	HSM
Type of connector:	Plug
Orientation:	Straight

All parameters

Manufacturer:: HSM Manufacturer part number: C0580-09MDASLOR RoHS Case style: Rys.DIDC09P

In stock:

343 pcs.

Quantity of pcs.	1+	5+	20+	90+	450+
Net price (EUR)	1,0716	0,7113	0,5896	0,5335	0,5101

Add to comparison tool Add inquiry (RFQ)

Packaging:
90/450 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	9
Colour:	Blue
Manufacturer:	HSM
Type of connector:	Plug
Orientation:	Straight
