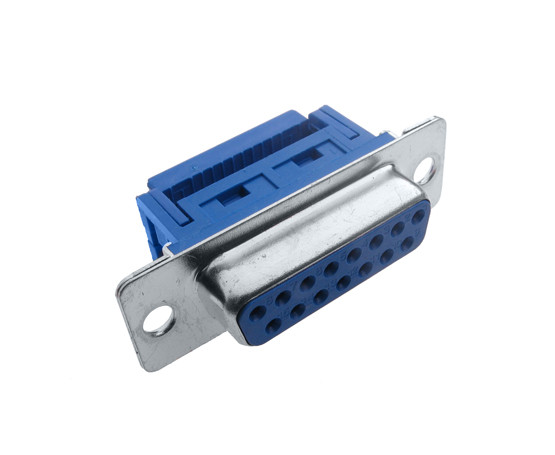

C0580-15FAASL0R HSM D-Sub Connector

Symbol Micros: Z DT15G

19216

Z DT15G

Contractor Symbol:

Case : Rys.DIDC15S

Datasheet

Technical drawing Add to favourites

male; 15pin; blue color,through hole, w/o rivets and screws, plastic housing gold plated contacts, blue insulator eqiv. DIDC15S-2, DFF15LC

Parameters

Colour:	Blue
Number of pins:	15
Manufacturer:	HSM
Type of connector:	Socket
Orientation:	Straight

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Colour:	Blue
Number of pins:	15
Manufacturer:	HSM
Type of connector:	Socket
Orientation:	Straight
