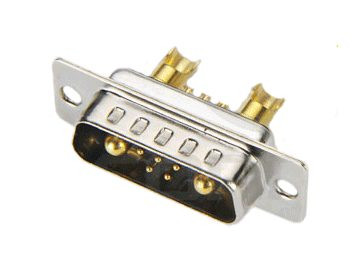

male D-Sub high current 7W2 30A

Symbol Micros: Z DWW07w2

47249

Z DWW07w2

Contractor Symbol:

Case : Rys.DWW07w2

Datasheet

Add to favourites

solder, straight, through hole, metal housing, nickled gold plated contacts, black insulator, w/o screws

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type of pin configuration:	7W2
Connector:	Plug
Mounting:	For soldering
Type of connector:	Male
Current:	30A
Spatial orientation:	Straight

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Type of pin configuration:	7W2
Connector:	Plug
Mounting:	For soldering
Type of connector:	Male
Current:	30A
Spatial orientation:	Straight
