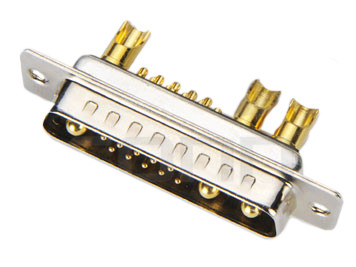

male D-Sub high current 13W3 30A

Symbol Micros: Z DWW13w3

47253

Z DWW13w3

Contractor Symbol:

Case : Rys.DWW13w3

Datasheet

Technical drawing Add to favourites

solder, straight, through hole, metal housing, nickled gold plated contacts, black insulator, w/o screws

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type of pin configuration:	13W3
Connector:	Plug
Mounting:	For soldering
Type of connector:	Male
Current:	30A
Spatial orientation:	Straight

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1033-03MBN83 RoHS Case style: Rys.DWW13w3

In stock:

1 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	4,8037	4,1310	3,8683	3,7278	3,6955

Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	13W3
Connector:	Plug
Mounting:	For soldering
Type of connector:	Male
Current:	30A
Spatial orientation:	Straight
