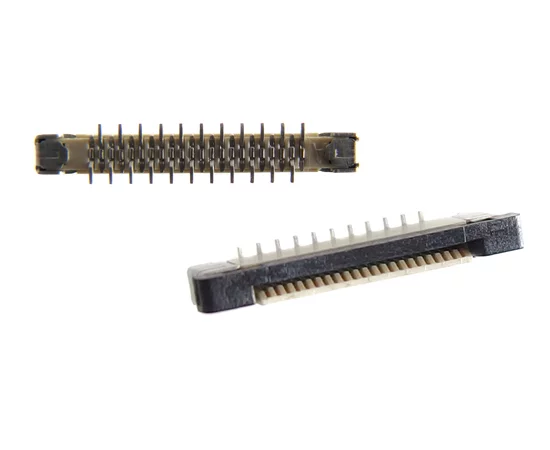

Connector ZIF FFC / FPC 0.5mm - 22pin

Symbol Micros: Z FFA22v

25052

Z FFA22v

Contractor Symbol:

Case : Rys.FFA22v

Datasheet

Technical drawing Add to favourites

50V max.; 0.5A max; straight, SMD, vertical type, normal layout

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	22
Type of connection:	Normal layout
Spatial orientation:	Straight
Mounting:	SMD
Terminal pitch:	0,5mm

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1020-08-22VBT11RoHS Case style: Rys.FFA22v

In stock:

995 pcs.

Quantity of pcs.	3+	10+	33+	198+	1000+
Net price (EUR)	0,3635	0,2370	0,1815	0,1491	0,1396

Add to comparison tool Add inquiry (RFQ)

Packaging:
33/1000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	22
Type of connection:	Normal layout
Spatial orientation:	Straight
Mounting:	SMD
Terminal pitch:	0,5mm
