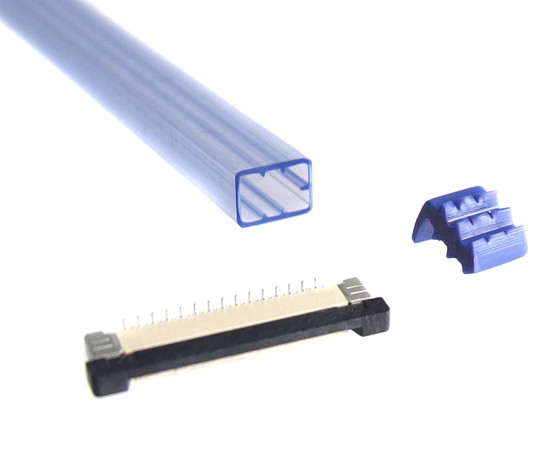

Connector ZIF FFC / FPC 0.5mm - 30pin

Symbol Micros: Z FFA30v

25060

Z FFA30v

Contractor Symbol:

Case : Rys.FFA30v

Datasheet

Technical drawing Technical drawing Add to favourites

50V max.; 0.5A max; straight, SMD, vertical type, normal layout

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	30
Type of connection:	Normal layout
Spatial orientation:	Straight
Mounting:	SMD
Terminal pitch:	0,5mm

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1020-08-30VBT11RoHS Case style: Rys.FFA30v

In stock:

392 pcs.

Quantity of pcs.	2+	10+	27+	162+	1000+
Net price (EUR)	0,4700	0,2857	0,2373	0,1998	0,1880

Add to comparison tool Add inquiry (RFQ)

Packaging:
27/1000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	30
Type of connection:	Normal layout
Spatial orientation:	Straight
Mounting:	SMD
Terminal pitch:	0,5mm
