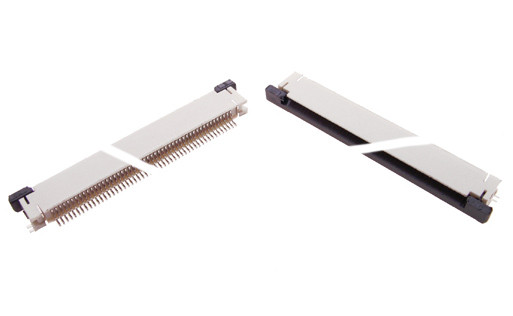

Connector ZIF FFC / FPC 0.5mm - 45pin

Symbol Micros: Z FFA45u

24980

Z FFA45u

Contractor Symbol:

Case : Rys.FFA45u

Datasheet

Technical drawing Add to favourites

50V max.; 0.5A max; angled, SMD, upper conact

Parameters

Number of pins:	45
Type of connection:	Upper contact
Spatial orientation:	Angled
Mounting:	SMD
Terminal pitch:	0,5mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	45
Type of connection:	Upper contact
Spatial orientation:	Angled
Mounting:	SMD
Terminal pitch:	0,5mm
