HA-004-FS WAIN

Symbol Micros: Z HA-004-FS

311184

Z HA-004-FS

Contractor Symbol:

Case : Rys.HA-004-FS

Datasheet

Technical drawing Add to favourites

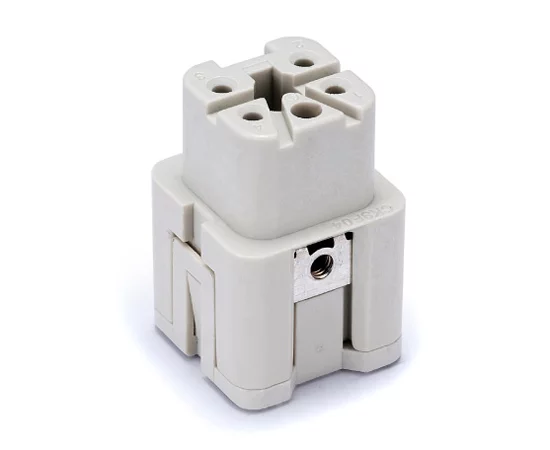

female connector, 5 pin (4+PE)10A, 600V, wire gauge: 0.75-1.5mm2 (AWG18-16) limiting temperatures: -40°C...+125°C, eqiv. HARTING 09200042711

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Connector type:	HDC
Current:	10A
Number of pins:	4+PE
Operating voltage:	600V
Mounting:	Quick Lock clamp
Type of connector:	Female

All parameters

Manufacturer:: WAIN Manufacturer part number: HA-004-FS Case style: Rys.HA-004-FS Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	20+	50+
Net price (EUR)	9,3699	8,7741	8,4014	8,2680	8,1483

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Connector type:	HDC
Current:	10A
Number of pins:	4+PE
Operating voltage:	600V
Mounting:	Quick Lock clamp
Type of connector:	Female
