HA-004-M-V2 WAIN

Symbol Micros: Z HA-004-M-V2

311178

Z HA-004-M-V2

Contractor Symbol:

Case : Rys.HA-004-M-V2

Datasheet

Technical drawing Add to favourites

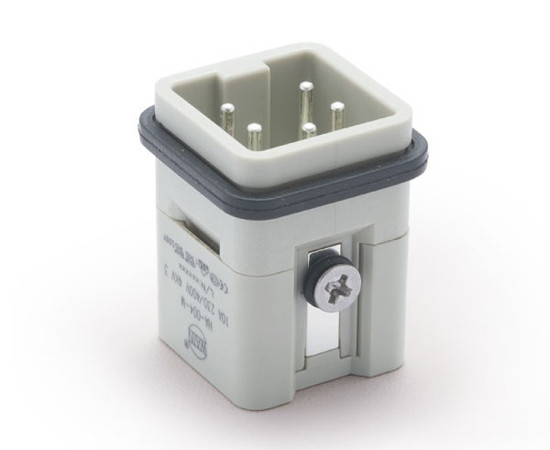

male connector, 5 pin (4+PE), 10A, 600V, wire gauge: 0.75-1.5mm2 (AWG18-16) limiting temperatures: -40°C...+125°C, eqiv. HARTING 09200042611

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Connector type:	HDC
Current:	10A
Number of pins:	4+PE
Operating voltage:	600V
Colour:	Grey
Mounting:	Screw clamp
Type of connector:	Male

All parameters

Manufacturer:: WAIN Manufacturer part number: HA-004-M-V2 Case style: Rys.HA-004-M-V2 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	3+	10+	30+	90+
Net price (EUR)	5,6046	5,1583	4,8882	4,7496	4,6697

Add to comparison tool Add inquiry (RFQ)

Packaging:
10/30 Quantity (multiple: 1)

- +

• Parameters

Connector type:	HDC
Current:	10A
Number of pins:	4+PE
Operating voltage:	600V
Colour:	Grey
Mounting:	Screw clamp
Type of connector:	Male
Wire insulation material:	PC
