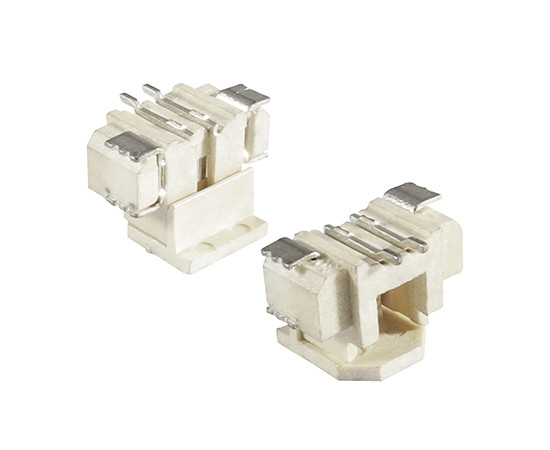

JVT1147W46-02SNBE-D JVT Cable connector

Symbol Micros: Z K1147M-02sv

115522

Z K1147M-02sv

Contractor Symbol:

Case : rys.K1147M-02sv

Datasheet

Technical drawing Add to favourites

socket; male; vertical; SMD; 2pin; 125V; 1A; pitch: 1,25mm; Oper. temp: -25°C~+85°C; eqiv. MOLEX 53398-0271, Multicomp MC34437

Parameters

Number of pins:	2
Connector:	Socket
Mounting:	SMD
Current:	1A
Operating voltage:	125V
Type of connector:	Male
Manufacturer:	JVT

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-07-10

Quantity of pcs.: 1000

• Parameters

Number of pins:	2
Connector:	Socket
Mounting:	SMD
Current:	1A
Operating voltage:	125V
Type of connector:	Male
Manufacturer:	JVT
