JVT1147WLP-03SNBER-S JVT Cable connector

Symbol Micros: Z K1147M-03sr

116430

Z K1147M-03sr

Contractor Symbol:

Case : rys.K1147M-03sr

Datasheet

Technical drawing Add to favourites

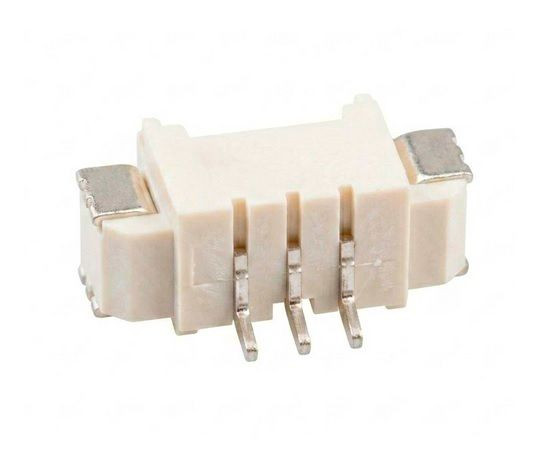

socket; male; horizontal; SMD; 3pin; 125V; 1A; pitch: 1,25mm; Oper. temp: -25°C~+85°C; eqiv. MOLEX 53261-0371, A1250WR-S-3P

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	3
Connector:	Socket
Mounting:	SMD
Current:	1A
Operating voltage:	125V
Type of connector:	Male
Manufacturer:	JVT

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	3
Connector:	Socket
Mounting:	SMD
Current:	1A
Operating voltage:	125V
Type of connector:	Male
Manufacturer:	JVT
