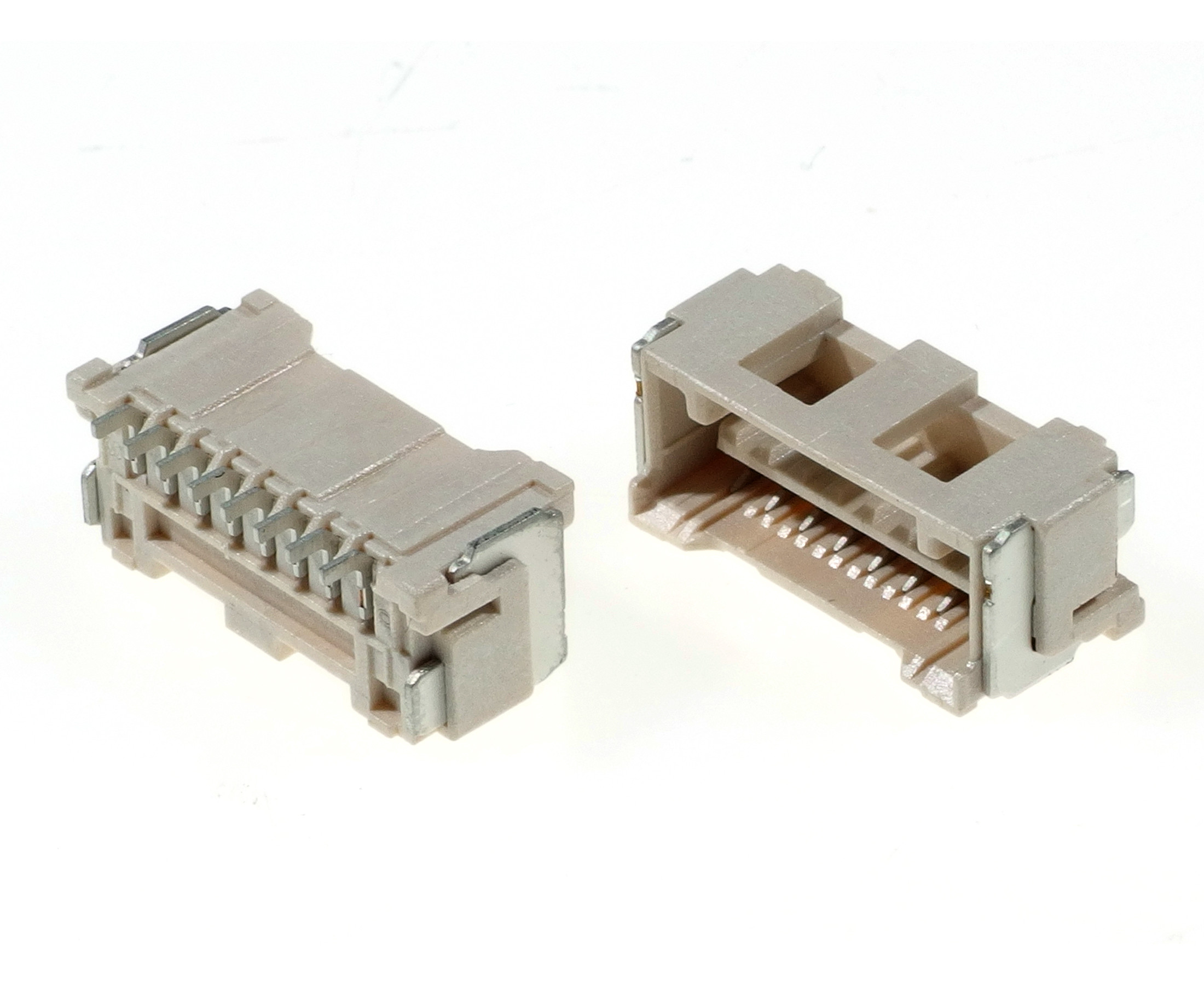

JVT1503WLP-08SNR-S JVT Cable connector

Symbol Micros: Z K1503M-08k

337307

Z K1503M-08k

Contractor Symbol:

Case : Rys.K1503M-08k

Datasheet

Technical drawing Add to favourites

socket; male; horizontal; 8pin; 100V; 1A; pitch: 1,5mm; oper. temp: -25°C~+85°C; material: PBT UL94V-0;

Parameters

Number of pins:	8
Manufacturer:	JVT
Operating voltage:	100V
Connector:	Socket
Current:	2A
Type of connector:	Male

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1503WLP-08SNR-S RoHS Case style: Rys.K1503M-08k Datasheet

In stock:

498 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,4416	0,2456	0,1934	0,1757	0,1700

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	8
Manufacturer:	JVT
Operating voltage:	100V
Connector:	Socket
Current:	2A
Type of connector:	Male
