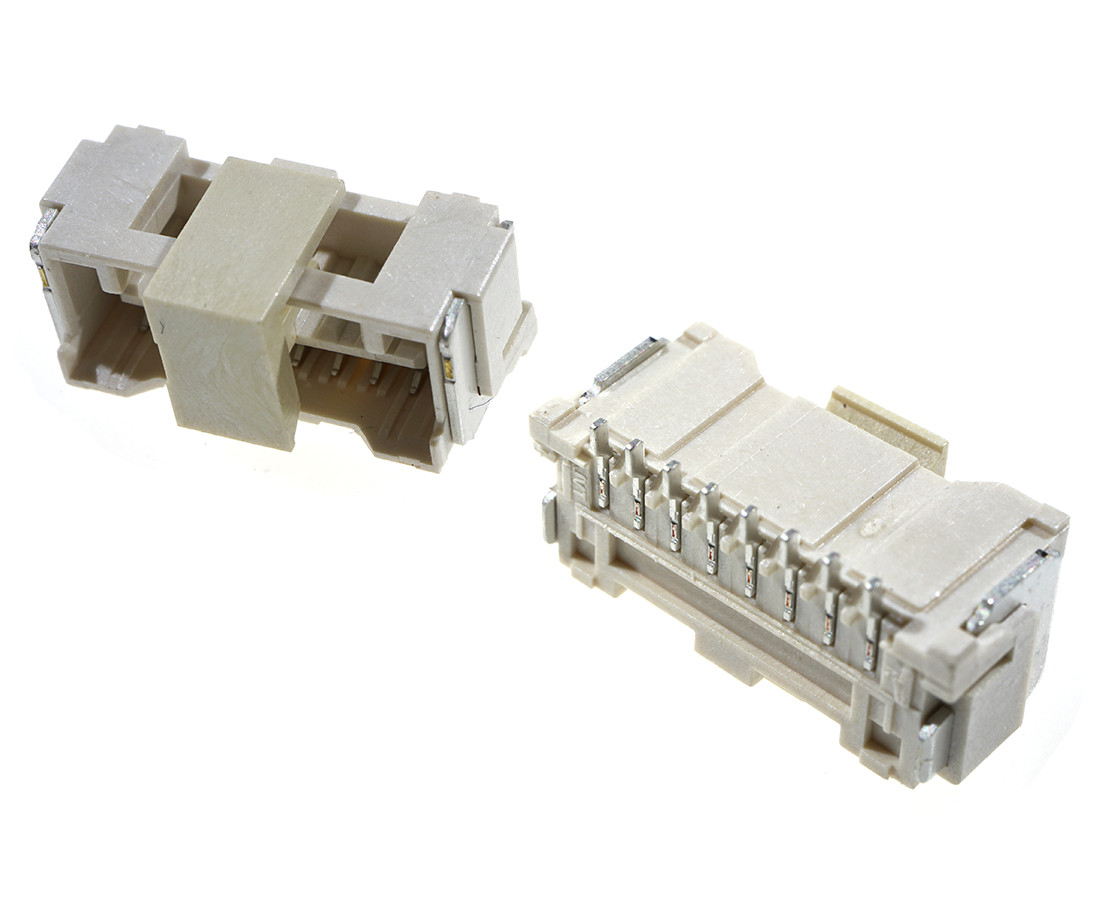

JVT1503WLP-08SNC-S JVT Cable connector

Symbol Micros: Z K1503M-08p

337302

Z K1503M-08p

Contractor Symbol:

Case : Rys.K1503M-08p

Datasheet

Technical drawing Add to favourites

socket; male; vertical; 8pin; 100V; 1A; pitch: 1,5mm; oper. temp: -25°C~+85°C; material: PBT UL94V-0;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	8
Manufacturer:	JVT
Connector:	Socket
Operating voltage:	100V
Current:	2A
Type of connector:	Male

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1503WLP-08SNC-S RoHS Case style: Rys.K1503M-08p Datasheet

In stock:

498 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,5332	0,3195	0,2443	0,2203	0,2128

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	8
Manufacturer:	JVT
Connector:	Socket
Operating voltage:	100V
Current:	2A
Type of connector:	Male
