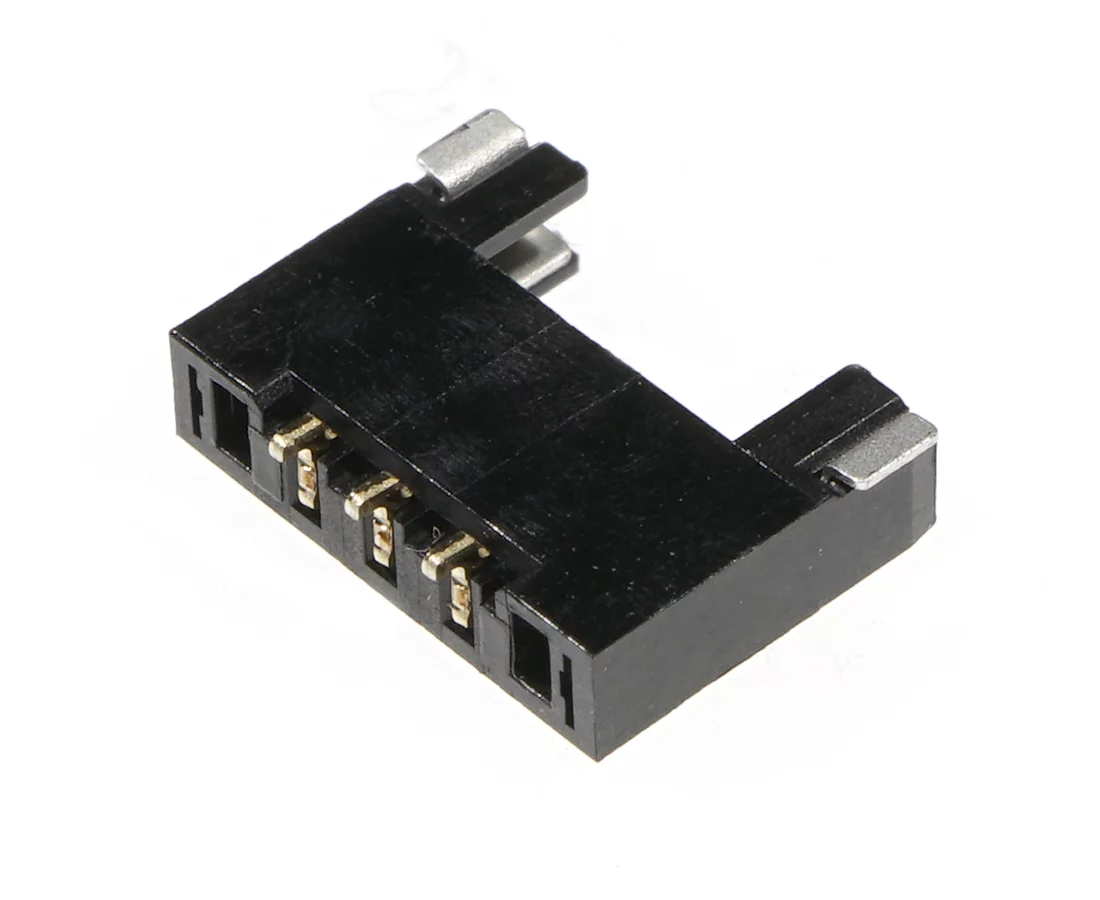

JVT1503WLP-03SN-S JVT Cable connector

Symbol Micros: Z K1505M-03k

337314

Z K1505M-03k

Contractor Symbol:

Case : Rys.K1505M-03k

Datasheet

Technical drawing Add to favourites

socket; male; vertical; 3pin; 100V; 2A; pitch: 1,5mm; oper. temp: -25°C~+85°C; material: LCP, brass pin, gold plated; eqiv. 504050-0391

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	3
Manufacturer:	JVT
Connector:	Socket
Operating voltage:	100V
Current:	2A
Type of connector:	Male

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1505W4T-03GAR-S RoHS Case style: Rys.K1505M-03k Datasheet

In stock:

1998 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,3289	0,1818	0,1435	0,1304	0,1261

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	3
Manufacturer:	JVT
Connector:	Socket
Operating voltage:	100V
Current:	2A
Type of connector:	Male
