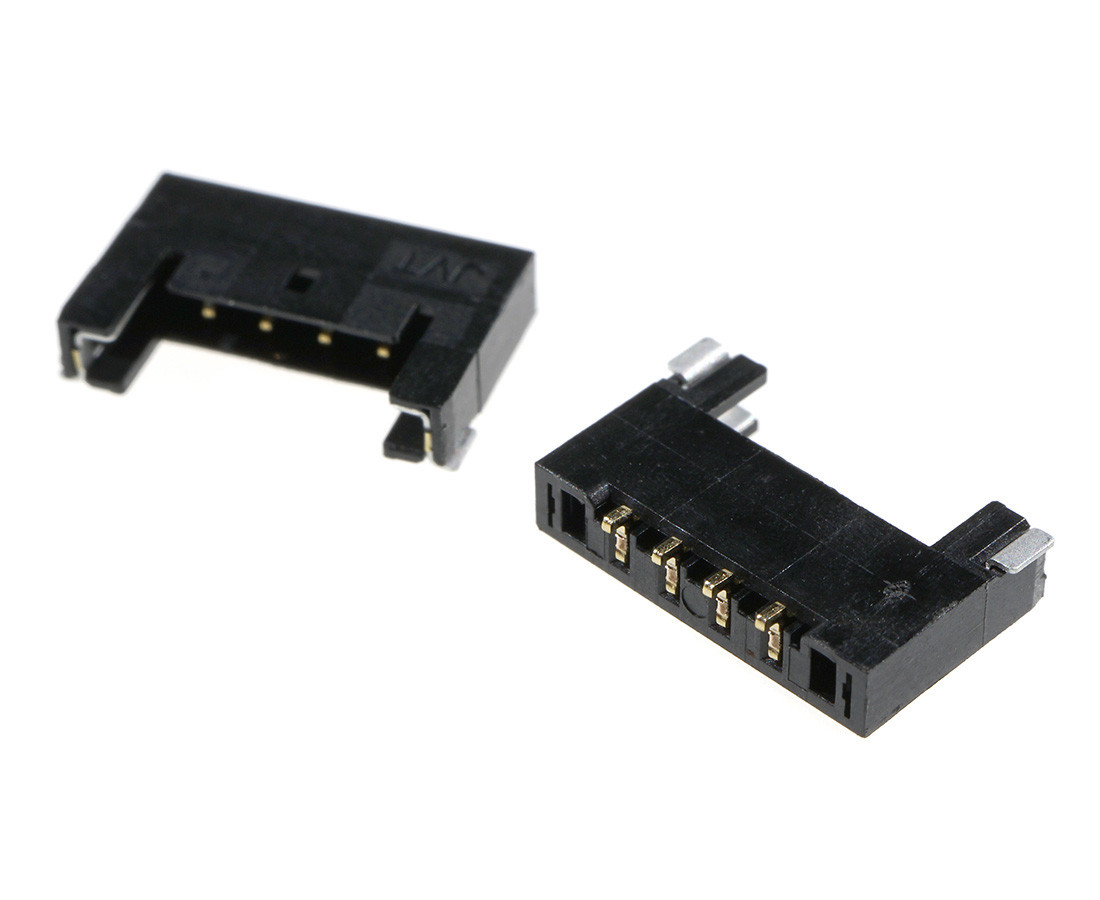

JVT1503WLP-04SNC-S JVT Cable connector

Symbol Micros: Z K1505M-04k

337315

Z K1505M-04k

Contractor Symbol:

Case : Rys.K1505M-04k

Datasheet

Technical drawing Add to favourites

socket; male; vertical; 4pin; 100V; 2A; pitch: 1,5mm; oper. temp: -25°C~+85°C; material: LCP, brass pin, gold plated; eqiv. 504050-0491

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	4
Manufacturer:	JVT
Connector:	Socket
Operating voltage:	100V
Current:	2A
Type of connector:	Male

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1505W4T-04GAR-S RoHS Case style: Rys.K1505M-04k Datasheet

In stock:

1978 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,3923	0,2170	0,1715	0,1555	0,1506

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	4
Manufacturer:	JVT
Connector:	Socket
Operating voltage:	100V
Current:	2A
Type of connector:	Male
