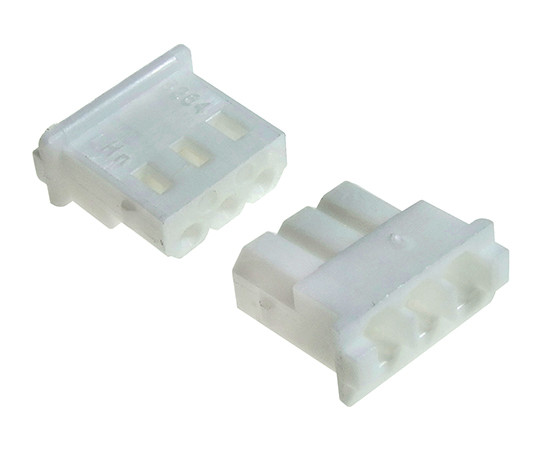

SNA2505-H03 CONNECTAR Cable connector

Symbol Micros: Z K2505F-03p

219087

Z K2505F-03p

Contractor Symbol:

Case : Rys.K2505F-03p

Datasheet

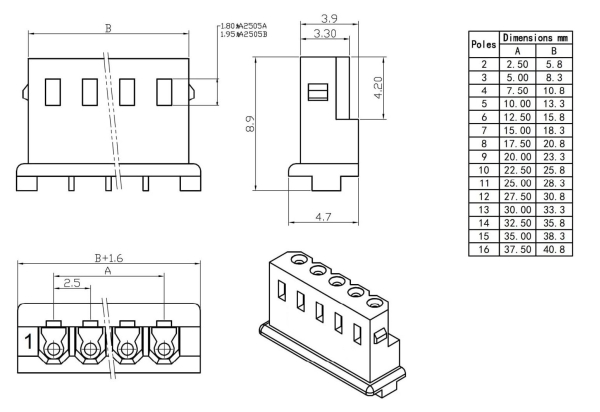

Technical drawing Add to favourites

plug; female; type: SPOX; 3pin; 250V; 3A; pitch: 2,5mm; wire range: 28-22 AWG; temp.pracy: -25°C~+85°C; mates with Z K2505M, eqiv. 50-37-5033

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	3
Manufacturer:	CONNECTAR
Connector:	Plug
Current:	3A
Operating voltage:	250V
Type of connector:	Female

All parameters

Manufacturer:: CONNECTAR Manufacturer part number:   Case style: Rys.K2505F-03p Datasheet

In stock:

6988 pcs.

Quantity of pcs.	20+	100+	500+	2000+	10000+
Net price (EUR)	0,0366	0,0133	0,0070	0,0054	0,0049

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 10)

- +

• Parameters

Number of pins:	3
Manufacturer:	CONNECTAR
Connector:	Plug
Current:	3A
Operating voltage:	250V
Type of connector:	Female
