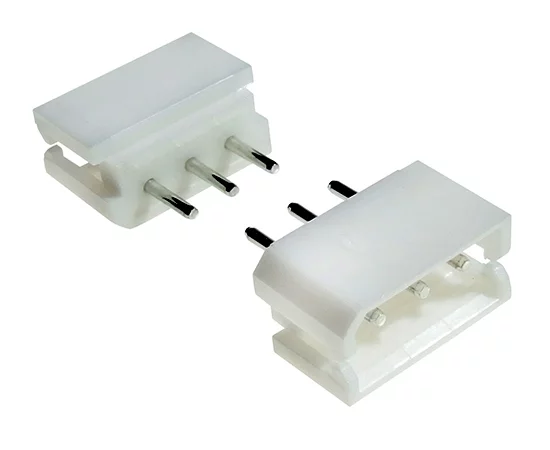

SNA2505-WV03 CONNECTAR Cable connector

Symbol Micros: Z K2505M-03p

219094

Z K2505M-03p

Contractor Symbol:

Case : Rys.K2505M-03p

Datasheet

Technical drawing Add to favourites

socket; male; type: SPOX; straight; 3pin; 250V; 3A; pitch: 2,5mm; wire range: 28-22 AWG; temp.pracy: -25°C~+85°C; mates with Z K2505F

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	3
Manufacturer:	CONNECTAR
Connector:	Socket
Current:	3A
Operating voltage:	250V
Type of connector:	Male

All parameters

Manufacturer:: CONNECTAR Manufacturer part number:   Case style: Rys.K2505M-03p Datasheet

In stock:

9638 pcs.

Quantity of pcs.	10+	50+	300+	2000+	10000+
Net price (EUR)	0,0693	0,0268	0,0139	0,0106	0,0099

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 10)

- +

• Parameters

Number of pins:	3
Manufacturer:	CONNECTAR
Connector:	Socket
Current:	3A
Operating voltage:	250V
Type of connector:	Male
