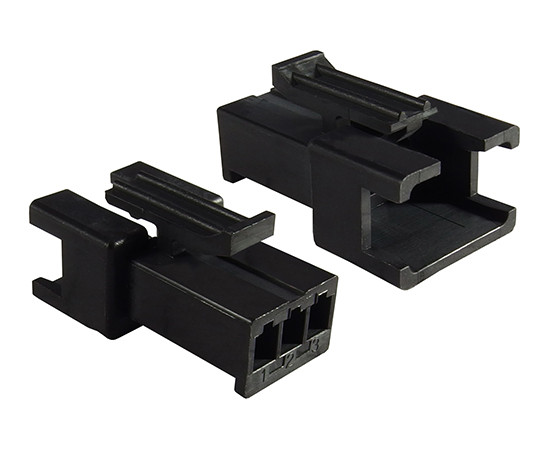

JVT6504HNO-03 JVT Cable connector

Symbol Micros: Z KSM03-JVT

117727

Z KSM03-JVT

Contractor Symbol:

Case : Rys.KSM03-JVT

Datasheet

Technical drawing Add to favourites

plug; male; 3pin; 250V; 3A; pitch: 2,5mm; wire range: 22-28 AWG; operating temp: -25°C~+85°C; material: PA66 UL94V-0; mates with KSF

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Number of pins:	3
Manufacturer:	JVT
Connector:	Plug
Current:	3A
Operating voltage:	250V
Type of connector:	Male

All parameters

Manufacturer:: JVT Manufacturer part number:   Case style: Rys.KSM03-JVT Datasheet

In stock:

1000 pcs.

Quantity of pcs.	10+	50+	200+	1000+	5000+
Net price (EUR)	0,0727	0,0278	0,0160	0,0116	0,0104

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 10)

- +

• Parameters

Number of pins:	3
Manufacturer:	JVT
Connector:	Plug
Current:	3A
Operating voltage:	250V
Type of connector:	Male
