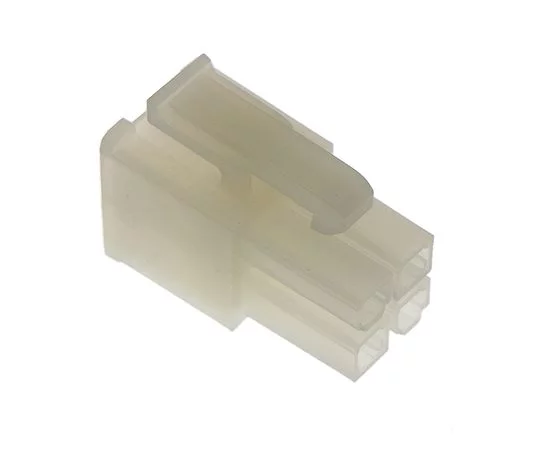

H5150-04PDW000R HSM ATX Connector

Symbol Micros: Z KWF5150-04

15107

Z KWF5150-04

Contractor Symbol:

Case : Rys.H5150-04

Datasheet

Technical drawing Add to favourites

Plug; female; 4pin (2x2); straight; pitch: 4,2mm; for cable; with key; dual row; white color eqiv. MRX557-04, Z KWF5150-04

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type of pin configuration:	2x2
Number of pins:	4
Connector:	Plug
Manufacturer:	HSM
Spatial orientation:	Straight
Mounting:	Cables
Type of connector:	Female

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1149HN2-2x02 RoHS Case style: Rys.H5150-04

In stock:

2700 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,2202	0,0881	0,0513	0,0426	0,0400

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

Manufacturer:: HSM Manufacturer part number: H5150-04PDW000R RoHS Case style: Rys.H5150-04

In stock:

9348 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,2202	0,0881	0,0513	0,0426	0,0400

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/15000 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x2
Number of pins:	4
Connector:	Plug
Manufacturer:	HSM
Spatial orientation:	Straight
Mounting:	Cables
Type of connector:	Female
