H5150-14PDW000R HSM ATX Connector

Symbol Micros: Z KWF5150-14

21264

Z KWF5150-14

Contractor Symbol:

Case : Rys.H5150-14

Datasheet

Technical drawing Add to favourites

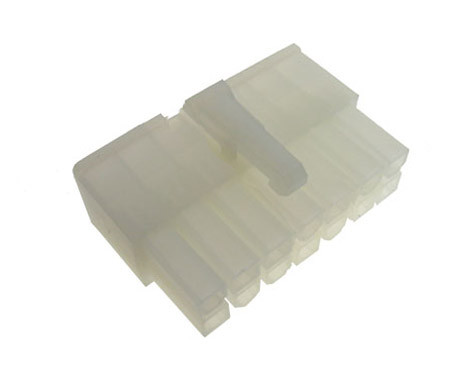

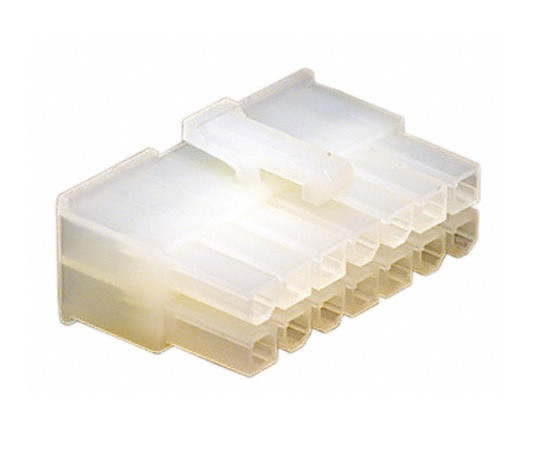

Plug; female; 14pin (2x7); straight; pitch: 4,2mm; for cable; with key; dual row; white color eqiv. MRX557-14

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type of pin configuration:	2x7
Number of pins:	14
Connector:	Plug
Manufacturer:	HSM
Spatial orientation:	Straight
Mounting:	Cables
Type of connector:	Female

All parameters

Manufacturer:: HSM Manufacturer part number: H5150-14PDW000R RoHS Case style: Rys.H5150-14

In stock:

346 pcs.

Quantity of pcs.	3+	10+	50+	250+	1000+
Net price (EUR)	0,2488	0,1585	0,1111	0,0952	0,0903

Add to comparison tool Add inquiry (RFQ)

Packaging:
250/1000 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x7
Number of pins:	14
Connector:	Plug
Manufacturer:	HSM
Spatial orientation:	Straight
Mounting:	Cables
Type of connector:	Female
