H5150-16PDW000R HSM ATX Connector

Symbol Micros: Z KWF5150-16

16615

Z KWF5150-16

Contractor Symbol:

Case : Rys.H5150-16

Datasheet

Technical drawing Add to favourites

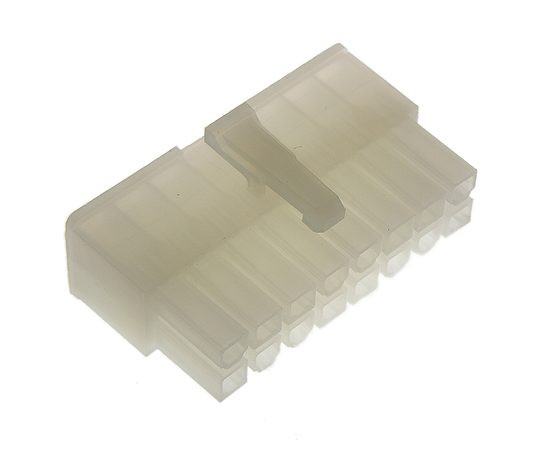

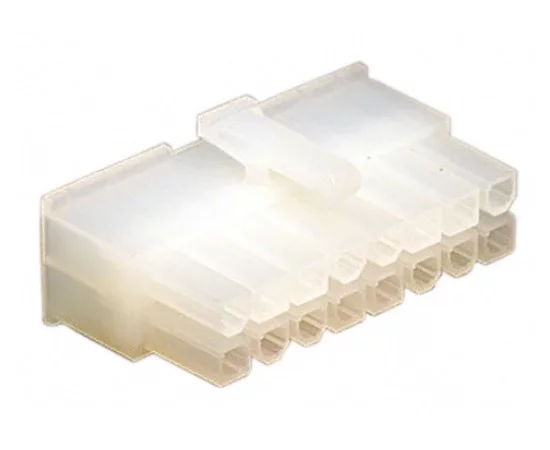

Plug; female; 16pin (2x8); straight; pitch: 4,2mm; for cable; with key; dual row; white color eqiv. MRX557-16

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type of pin configuration:	2x8
Number of pins:	16
Connector:	Plug
Manufacturer:	HSM
Spatial orientation:	Straight
Mounting:	Cables
Type of connector:	Female

All parameters

Manufacturer:: HSM Manufacturer part number: H5150-16PDW000R RoHS Case style: Rys.H5150-16

In stock:

2000 pcs.

Quantity of pcs.	3+	10+	50+	250+	2000+
Net price (EUR)	0,3131	0,2063	0,1485	0,1285	0,1207

Add to comparison tool Add inquiry (RFQ)

Packaging:
250/2000 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x8
Number of pins:	16
Connector:	Plug
Manufacturer:	HSM
Spatial orientation:	Straight
Mounting:	Cables
Type of connector:	Female
